Controller ARM

32-bit industrial ARM processor
speed up to 4m/s
CAN bus communication

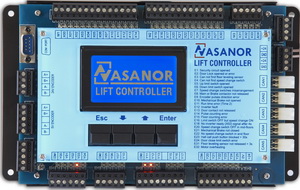

The main controller board is equipped with a 32-bit industrial ARM processor, and comes with dual-CPU to ensure improved system safety. It offers strong anti-interference and anti-static capabilities and passed the test for contact discharge up to 8000V. The 32-bit standard serial main controller board is manufactured according to EN81 and GB7588 safety rules, and is ideal for control of elevators in commercial buildings and residential buildings up to 64 floors. It helps ensure smooth, steady, accurate and comfortable elevator running. The maximum elevator speed is up to 4m/s.


The serial main controller board supports CAN bus communication and hence supports weight compensation system with CAN bus interface. The main controller board also supports functions such as remote monitoring, elevator car performance test, and control of both asynchronous and synchronous traction motor. And it is compatible with encoders. It can keep maximally 50 historic records for elevator failures.

Standard Functions Offered by the 32-Bit Standard Serial Main Controller Board:

  • Standard functions
  • Full collective control
  • Inspection mode
  • Low speed rescue operation
  • Testing mode
  • Timer control
  • Automatic control on door-opening time
  • Door open at current floor
  • Close the door in advance by door-closing button
  • Open the door by door-opening button
  • Door re-open
  • Landing at another destination
  • Manual call cancellation
  • Automatic call cancellation (when elevator operated in reversed direction)
  • Direct landing
  • Full load bypass (ignore car calls in full load condition)
  • Car light and ventilation fan shut off automatically (when elevator is standby)
  • Automatic return to the lowest floor
  • LCD operation interface
  • Analog speed control
  • Digital speed control
  • Failure record
  • Self-learning of hoist way parameters( With Encoder)
  • Service floor setting
  • Setting of the displaying characteristics
  • Dot matrix floor display
  • Automatic correction for landing position signals
  • Elevator locking
  • Door-open protection (when elevator is not in landing area)
  • Light curtain protection (to ensure the safety of passengers and their belongs during door-closing process)
  • Overload protection
  • Anti-nuisance
  • Protection from running in reversed direction
  • Protection from rope slipping
  • Protection from car sliding
  • Protection from car overrun
  • Contactor's contact safety protection (to make sure the contactors work safely)
  • Speed regulator failure protection
  • WDT protection
